ASM – Drying System

ecoDRYER' Digestate Dryer

About the Company:

ASM is a UK incorporated environmental Biotech company, located in London. Founded in 2003, ASM’s business focus is the marketing and sales of its patented Accelerated Thermophilic Aerobic Digestion technology (ATAD), which converts organic waste materials into commercially viable commodities such as granular fertiliser, animal feed and pure energy.

About the Solution:

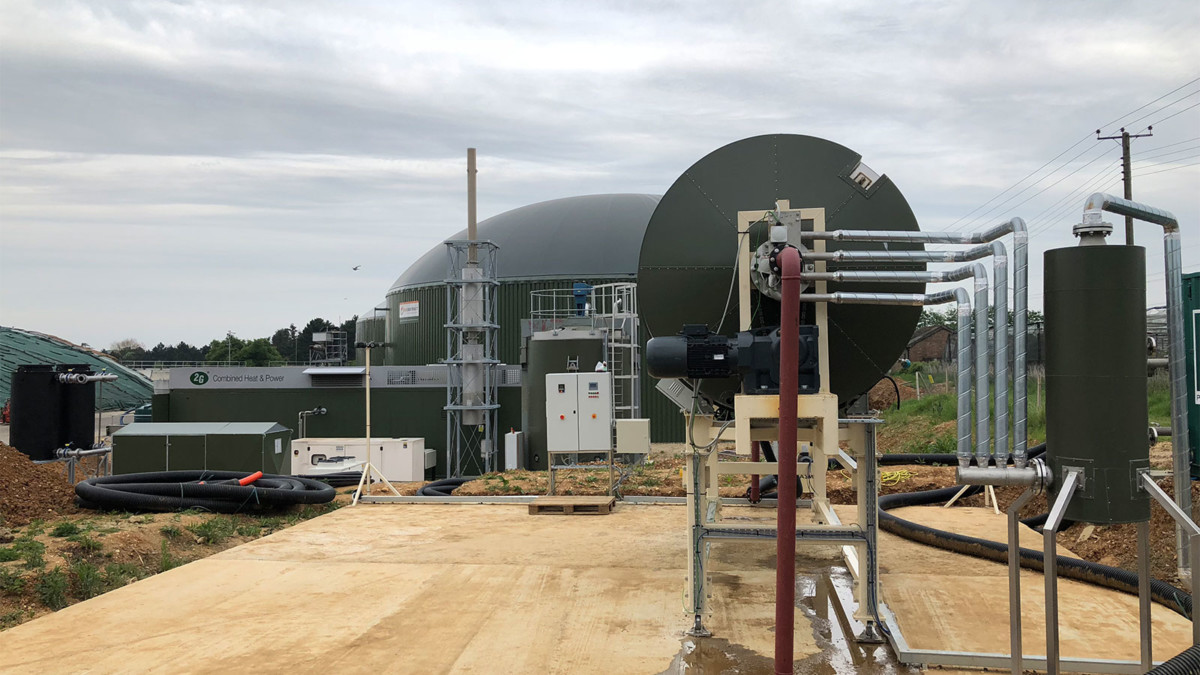

Most sludge dryers come with a very high capital cost or they consume large amounts of power. Both causing the final solution not to be economically viable for the investor. The AMS solution is developed to use as little power as possible and designed to give you a return on investment in around three years. Thereafter you will be generating a profitable income. AMS uses a dewaterer, a rotary dryer and recycled heat. AMS sets up an affordable solution based on your resources and requirements. The end product will be a granulated 85% dry solid, usable as slow release fertiliser.

ASM Gardiner Building, Brunel Science Park, Uxbridge, Middx 604-376-7347 Visit Company Website

Solution Type

  • Active Solids Drying

Vendor

  • Equipment Vendor

Product

  • Concentrated Nutrients

Problem

  • GHG
  • Nitrogen
  • Odor
  • Pathogens
  • Storage

To view additional information about this vendor, click below.

Solution Strengths, Weaknesses and Critical Indicators

Active Drying Technologies:

  • Produce a marketable product, dry manure solids, and reduce transportation costs
  • Require energy to reduce water content and dry manure solids, purchased energy cost are an issue
  • Require operator attention in excess of other systems due to the risk of combustion
  • Other compounds are released with the water (i.e. ammonia, hydrogen sulfide), and require additional treatment
  • Potential loss of ammonia nitrogen due to volatilization
  • Proven technology for storage reduction, odor control, GHG reduction and pathogen reduction

Newtrient Comments/Opinions:

Evaporation and Drying Technologies:

  • Uses heat to produce either manure with less water or dried manure solids
  • Systems that reduce water in manure use a series of evaporators to sequentially evaporate water from liquid slurries—energy is supplied either by purchased fuel and/or waste heat from other processes
  • Systems that dry separated solids use either a belt or drum to evaporate water from separated solids—energy is supplied either by purchased fuel, electricity and/or waste heat from other processes
  • Chemicals are released with the water (i.e. ammonia, hydrogen sulfide), and this often requires additional treatment such as condensation of the water and/or scrubbing of the chemicals
  • The requirement for purchased energy and costs are a significant concern leading to a tradeoff between input costs and gains in liquid concentration and transportation/market of by-products
  ASM has not been evaluated using Newtrient's 9-point scoring process because they are not seeking dairy based projects.

Newtrient 9-Point Scoring Rating

View the Scoring Page

Disclaimer: Newtrient has collected the information and photographs on this page from public sources including the vendor’s website and promotional material in accordance with Section 107 of the Copyright Act 1976, allowance for "fair use". All vendor product and company names are trademarks™, registered trademarks® and/or trade names of the respective vendors or their licensors. Unless otherwise noted, Newtrient is not associated, connected or affiliated with, or sponsored or endorsed by, any vendor or licensor of such trademarks and trade names. See Terms of Use for details.
