PRODEVAL – Valogaz – Biogas Drying and Cooling

Home / Catalog Entries / PRODEVAL – Valogaz – Biogas Drying and Cooling

PRODEVAL – Valogaz – Biogas Drying and Cooling

RNG Process Technologies

About the Company:

PRODEVAL specializes in converting Biogas from the Anaerobic Digestion of organic waste into Biomethane. This 100% renewable energy can be used to replace fossil fuels, preventing further CO2 emissions. Their innovative solutions currently prevent the emission of 50.45 tons of CO2e per hour.

You can even distribute BioCNG, a 100% renewable fuel alternative, through their fueling solutions. PRODEVAL, has developed refueling stations capable of supplying all types of vehicles and all types of fleets. With scalable solutions that can be adapted to suit the needs of clients. BioCNG is safe, green fuel.

Over the past 30 years, PRODEVAL has honed their expertise in both engineering, and the production and distribution of Biomethane. Their staff will be on-hand to assist you with your project, providing a full follow-up service to ensure smooth running of your installations for as long as they are in use.

PRODEVAL is ISO 9001 certified. This certificate shows that the quality management system meets all the strict requirements and applies to modular gas systems for CNG distribution.

About the Solution:

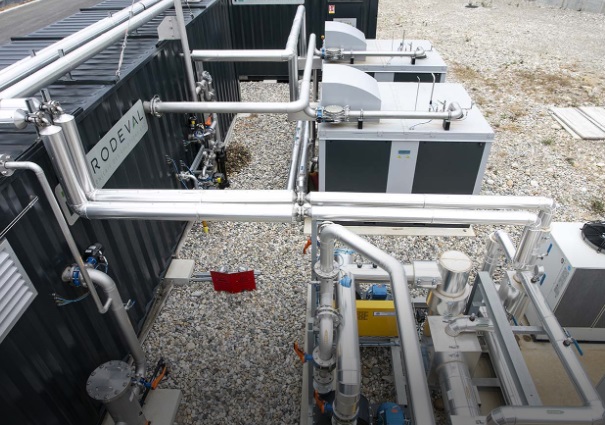

As it leaves the digester, raw biogas is saturated with water and must be dried before it can be used. PRODEVAL therefore cools the biogas to 5°C in the VALOGAZ unit, which separates and eliminates the liquid fraction contained in the biogas.

The unit is dimensioned in a way that allows cooling the maximum flow rate of gas in even the toughest conditions. For this, PRODEVAL employs the use of smooth, 316L stainless steel tubes, alongside with two chillers to handle any variations in temperature. The gas is then moved onto the next stage, VALOPACK, via the blower.

VALOGAZ Advantages:

  • Raw gas is cooled to 5°C
  • Smooth tubes enable the maximum flow rate of gas to be cooled
  • Two chillers to handle any variations in temperature
  • Blower moves the gas on to the next stage (activated carbon filtration)

  • PRODEVAL PRODEVAL CORP. 1437 Payne Road Schaumburg, , IL USA + 1 224-353-6327 Visit Company Website

    Solution Type

    • AD Support

    Vendor

    • Equipment Vendor
    • Service Provider

    Product

    • Energy
    • Services

    Problem

    • GHG

    To view additional information about this vendor, click below.

    Solution Strengths, Weaknesses and Critical Indicators

    Anaerobic Digester Associated Technology:

    NOTE: There are several technology types that are used as part of an integrated manure management system that includes an anaerobic digester and are not applicable to manure management in other cases. The impact of these technologies on the critical indicators are represented as those of an entire anaerobic digester system.



    • Long usable life and can be run reliably
    • Creates energy and generates environmental credits
    • Requires proper preparation of the feedstock
    • Requires other technologies for energy utilization
    • Requires other technologies for digestate handling
    • Proper feeding & system monitoring is required to avoid system downtime
    • Proven technology for odor control, GHG reduction and pathogen reduction

    Newtrient Comments/Opinions:

    PRODEVAL has recently been added to the Newtrient catalog. Newtrient will continue to work with PRODEVAL to further refine the cost and performance information on their solutions. Newtrient will update this entry as more information becomes available and as new commercial dairy installations come online.

    Newtrient 9-Point Scoring Rating

    View the Scoring Page
